เครื่องกว้าน / Winch

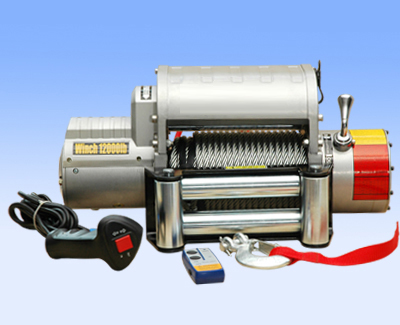

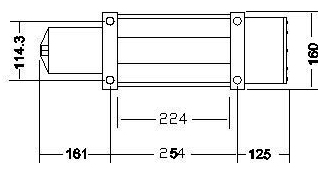

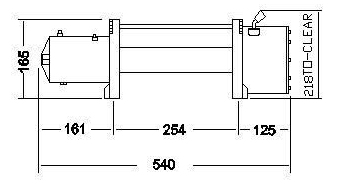

| Model : CM12000-I |
 |
 |
 |
Performance |
12VDC |
Single line rated pull |
12000lb , 5443 KG |
Motor |
6.0hp / 4.5 kw, series wound |
Control |
Remote switch, 12ft 3.7 M lead |
Gear train |
3 Stage planetary |
| Gear reduction ratio | 265.2 : 1 |
| Clutch | Sliding ring gear |
| Braking Action | Automatic In The Drum |
| Drum size | Diameter 2.52" Length 8.82" |
| Cable | 88ft of 3/8" diameter |
| Fairlead | 4 way roller fairlead |
| Remote control | Included |
| Battery | Recomended : 650 CCA minimum for winching |
| Battery Leads | 2 gauge, 72" |
| NW/GW | 43 KG / 47 KG |
เครื่องกว้าน / Winch

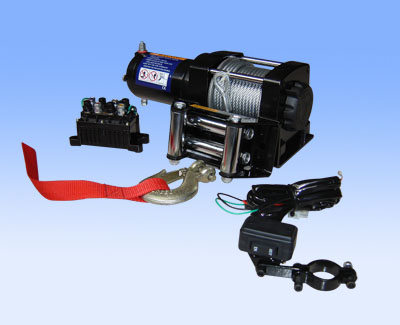

| Model : CMS3500-A |
 |
 |
 |
| Rated line Pull | 3500lbs(1587kgs) Single-line |
| Gera ratio | 153 : 1 |
| Gear train | NGWN type planetary gear transmission |
| Clutch | Turn |
| Motor | Permanent magnet DC 12V motor with 1.3hp output |
| Battery Leads | 0.24" 2 x 6.23 (6mm2 x 1900mm) |
| Control | 0.02" 2 x 10.17' (0.5mm2 x 3100mm) Black 0.02" 2 x 10.17' (0.5mm2 x 3100mm) Green 0.02" 2 x 4.26' (0.5mm2 x 1300mm) Red |
| Motor leads | 0.24" 2 x 4.26' (6mm2 x 1300mm) |

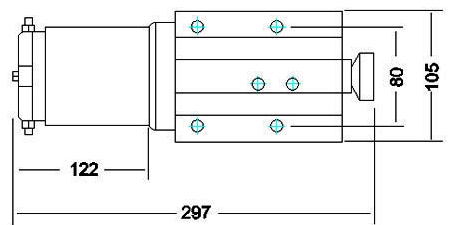

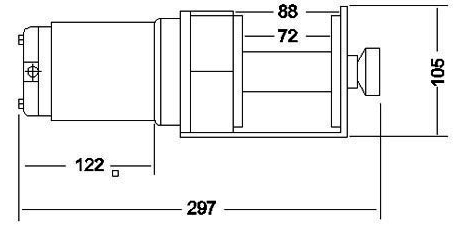

| Overall Dimension | 12.64"(L)x7.83" (W)x4.72"(H) 321(L)x199(W)x120(H)mm |
| Drum size | ∮1.61" (D) x 2.9" (L) ∮41(D) x 74(L)mm |
| Fairlead | included |
| Cable length | 50ft(L) of ∮7/32" 15.2m(L) of ∮5.4mm |
| Mounting pattern | 3.67" 93mm |
