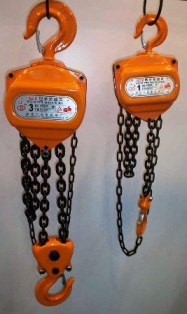

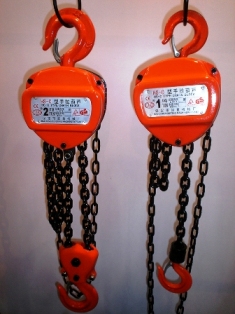

รอกโซ่อุตสาหกรรม / Chain Blocks
| Model : NSZ-B Series | Model : NSZ-B Series |
 |
 |

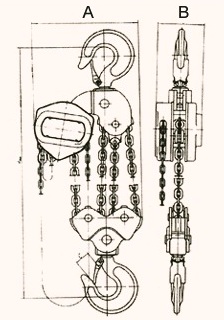

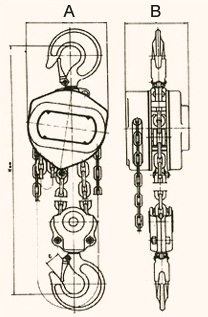

| Sample dimension 1.5 - 5 T | Sample dimension 10, 20 T |
 |
 |
Model |
HSZ-B1 |
HSZ-B2 |
HSZ-B3 |
HSZ-B5 |
HSZ-B10 |
HSZ-B20 |
Capacity - T |
1 |
2 |
3 |
5 |
10 |
20 |
Standart lift heigh- M |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
Load test max- M |
1.5 |
3 |
4.5 |
6.25 |
12.5 |
25 |
No.of load chain fall lines |
1 |
2 |
2 |
2 |
4 |
8 |
Diameter of chain (mm) |
6 |
6 |
8 |
10 |
10 |
10 |
Dimensions A (mm) |
164 |
164 |
198 |
228 |
367 |
598 |
| Dimensions B (mm) | 124 | 124 | 142 | 167 | 167 | 200 |
| Net weight (Kg) | 11 | 15 | 24 | 39 | 72 | 160 |

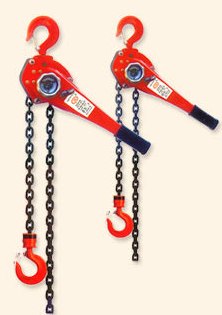

รอกโซ่อุตสาหกรรม / Lever Blocks
| Model :HSH Series | |
 |
|

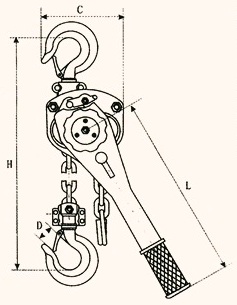

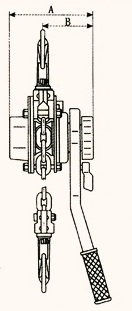

| Sample dimension front look | Sample dimension side look |
 |
 |
Model |
HSH-3/4 |
HSH-1 1/2 |
HSH-3 |
HSH-6 |
Capacity - T |
0.75 |
1.5 |
3 |
6 |
Standart lift heigh- M |
1.5 |
1.5 |
1.5 |
1.5 |
Load test max- M |
11 |
22 |
37.5 |
75 |
No.of load chain fall lines |
1 |
1 |
1 |
2 |
Diameter of chain (mm) |
6 |
8 |
10 |
10 |
Dimensions A (mm) |
155 |
180 |
215 |
215 |
| Dimensions B (mm) | 95 | 105 | 130 | 130 |
| Dimensions C (mm) | 135 | 155 | 200 | 200 |
| Dimensions D (mm) | 30 | 36 | 40 | 50 |
| Dimensions H (mm) | 320 | 380 | 480 | 600 |
| Dimensions L (mm) | 285 | 370 | 420 | 420 |
| Net weight (Kg) | 7.2 | 11.5 | 21 | 31 |

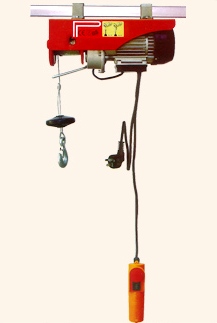

รอกโซ่อุตสาหกรรม / Electric Block
| Model :PA Series | |
 |
|
| Model | Method of use | Rated Volt | Input Power | Lifting Weight KG | Lifthing Speed m/min | Lifting High | Packing Dimention CM | Weight KG |
| HGSB100-12 / PA200A | Single Hook | 220/23 | 450 | 100 | 10 | 12 | 46 x 36 x 16 | 24 |
| Double Hook | 200 | 5 | 6 | |||||
| HGSB125-12 / PA250A | Single Hook | 220/23 | 500 | 125 | 10 | 12 | 46 x 36 x 16 | 25 |
| Double Hook | 250 | 5 | 6 | |||||
| HGSB150-12 / PA300A | Single Hook | 220/23 | 550 | 150 | 10 | 12 | 46 x 36 x 16 | 26 |
| Double Hook | 300 | 5 | 6 | |||||
| HGSB200-12 / PA400A | Single Hook | 220/23 | 750 | 200 | 10 | 12 | 52 x 41 x 17 | 35 |
| Double Hook | 400 | 5 | 6 | |||||
| HGSB250-12 / PA500A | Single Hook | 220/23 | 900 | 250 | 10 | 12 | 52 x 41 x 17 | 36 |
| Double Hook | 500 | 5 | 6 | |||||
| HGSB300-12 / PA600A | Single Hook | 220/23 | 1050 | 300 | 10 | 12 | 52 x 41 x 17 | 37 |
| Double Hook | 600 | 5 | 6 | |||||
| HGSB350-12 / PA700A | Single Hook | 220/23 | 1200 | 350 | 10 | 12 | 52 x 41 x 17 | 38 |
| Double Hook | 700 | 5 | 6 | |||||
| HGSB400-12 / PA800A | Single Hook | 220/23 | 1350 | 400 | 10 | 12 | 52 x 41 x 17 | 39 |
| Double Hook | 800 | 5 | 6 | |||||
| HGSB500-12 / PA1000A | Single Hook | 220/23 | 1600 | 500 | 10 | 12 | 52 x 41 x 17 | 34 |
| Double Hook | 1000 | 5 | 6 | |||||
| HGSB500-18 / PA1000A | Single Hook | 220/23 | 1600 | 300 | 10 | 12 | 52 x 41 x 17 | 35 |
| Double Hook | 600 | 5 | 6 |
