เครื่องกำเนิดไฟฟ้า / Gasoline Generator

Diesel Generator Set Model : SDE670T3 / TA3

Model		SDE6700T3 / TA3
Rated frequency	Hz	50 / 60
Rated output	kVA	5.5 / 6.3
Max. Outpur	kVA	6 / 7
Rated Voltage	V	230/400 / 240/416
Rated current	A	7.9 / 8.7
Rated rotation speed	rpm	3000 / 3600
Phase No.		Three phase " Y " type connection
Power factor		0.8 (lag)
Insulation grade		B
Pole number		2
Excitation mode		Self excitation and constant voltage (AVR)
Panel type		T3:General panel TA3:Digitial panel & ATS
Voltage	V	230/400 / 240/416
Output Receptacle		One single phase & one three phases receptacles
Connection pole		Without
DC12 V output		DC receptacle output
Overall dimention L x W x H	mm	915 x 547 x 742
Dry weight	Kg	182
Working assorting weight	Kg	198
Noise level (7m)	dB(A)	72
Structure type		Silent
Engine mode		SD186Fa
Engine type		Single cylinder, Vertical, Four-stoke, direct injection
Cylinder NO,.	mm	1-86 x 72
Displacement	ml	418
Rated power	kW	5.7/3000 / 6.3/3600
Compression ratio		19:01
Rated rotation speed	r/min	3000 / 3600
Combustion system		-
Cooling system		Air cooled
Lubrication system		Pressure splashed
Starting system		Electric start
Fuel type		0#(Summer)-10#(Winter)-35#(chillness)diesel
Lube oil brand		SAE10W30 (Above CD grade)
Capacity of cooling water	L	Without
Lube capacity	L	1.65
Starging generator capacity	V-kW	12V / 0.8 KW
Charging generator capacity	V-A	12V / 3A
Battery capacity	V-Ah	12V / 36AH
Fuel consumption	g/kW-H	275.1 / 281.5
Fuel tank capacity	L	16
Continuous runing time	hr	9.5

เครื่องกำเนิดไฟฟ้า + เครื่องเชื่อม

Welding &Diesel Generator Set Model : SDE7000TW

Model		SDE6700T3 / TA3
Rated frequency	Hz	50 / 60
Rated Voltage	V	230 / 240
Rated current	A	10.9 / 11.2
Rated Output Power	KW	2.5 /2.7
Rated rotation speed	rpm	3000 / 3600
Welding voltage at zero load	V	65-70
Rated Welding DC current	A	180
Rated Voltage	V	25-30
Welding load continuous ratio		50%
Current regulation range	A	80-200
Power factor		1
Phase number		Single phase
Noise level 7m	dB(A)	70
Net weight	kg	171
Structure type		Silent
Continuous rinning time	hr	10
Excitation Model		Self excitation and constant voltage
Starting system		Electric start
Engine Model		SD186FAE
Engine Type		Single cylinder, 4-stoke, air cooled, vertical
Displacement	L	418
Combustion ration		19:01
Rated Power	kw/rpm	5.9/3000 / 6.5/3600
Fuel type		0#(Summer)-10#(Winter)-35#(chillness)light diesel
Lube oil brand		SAE 10W30 above CD grade
Fuel tank capacity	L	12:00
Lube capacity	L	1.65
Low oil pressure alert system		with

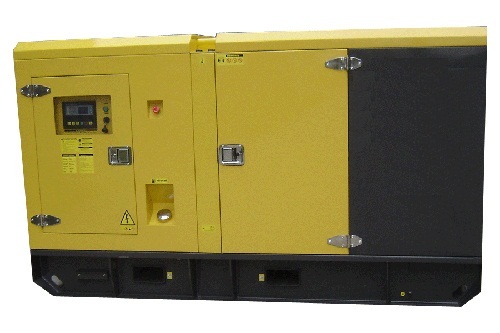

Diesel Generator 3-PH, 50Hz
